Toyota Scion Factory Radio Add A 4 Channel Amplifier Plug & Play Wire Harness

  • Sale
  • $ 54.99


Toyota Scion Factory Radio Add A 4 Channel Amplifier Plug & Play Wire Harness


Want to add a subwoofer to your original stereo?

Don’t want or know how to cut into your wiring?


Take the wiring guesswork out of the installation with this plug and play wire harness!  Installation is as easy as 1, 2, 3!

1.      Remove your OEM factory radio

2.      Unplug the OEM factory wiring and plug in this wire harness

3.      Reinstall your OEM factory radio

What is it?

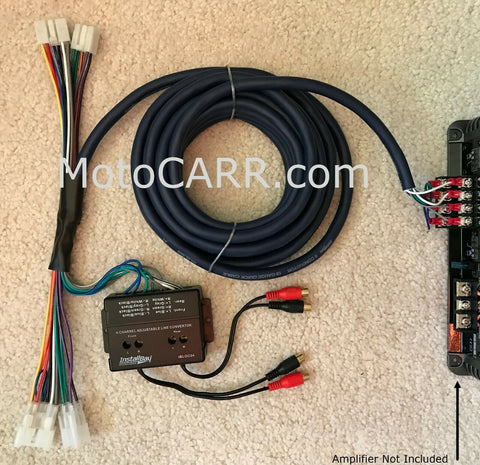

This wire harness provides a connection for two sets of RCA cables to provide an audio signal to an external 4 channel amplifier, as well as 4-channel speaker wires to carry the amplified audio signal back to the harness behind the radio.  Also pre-installed on the harness is an amplifier remote turn on wire.  Plug in the harness, connect the speaker wire to the amp, and all that’s left for you to do is connect the main power wire from your battery and ground. (Not included)

What you will receive:

·         One (1) plug and play wire harness(Amplifier pictured not included.)

Compatibility Notes:

• Audio volume to the amplifier can be adjusted by the dials on the harness.

• We use a variety of wire colors for the remote wire.(Usually Blue)  Regardless of color, rest assured it is for the remote turn on of an amplifier.

Compatible with these models

MAKE MODEL FROM TO
GEO Prizm 1990 1992
GEO Prizm 1989 1989
LEXUS ES250  (with cassette) 1990 1991
LEXUS LS 400 1990 1992
SCION FRS 2013* 2016*
SCION iM 2016 2016
SCION iQ 2012 2015
SCION tC  2014 2015
SCION tC  2011 2013
SCION tC  2005 2010
SCION xA 2004 2006
SCION xB 2004 2015
SCION xD 2008 2014
SUBARU BRZ 2013* 2015*
SUBARU Forester 2016 2017
SUBARU Forester (with nav) 2014 2015
SUBARU Forester equipped with SD card based OE nav 2009 2013
SUBARU Impreza 2015 2016
SUBARU Impreza (with nav) 2012 2014
SUBARU Impreza WRX (with nav) 2013 2014
SUBARU Legacy 2015 2017
SUBARU Legacy (w/ nav) 2013 2014
SUBARU Legacy (w/o nav) (w/o factory amp) (display radio) 2012 2014
SUBARU Outback 2015 2017
SUBARU Outback (w/ nav) 2013 2014
SUBARU Outback (w/o nav) (w/o factory amp) (display radio) 2012 2014
SUBARU WRX 2016 2017
SUBARU XV Crosstrek 2015 2016
SUBARU XV Crosstrek (with nav) 2013 2014
TOYOTA 4-Runner 2014 2016
TOYOTA 4-Runner 2010 2013
TOYOTA 4-Runner (without RDS JBL radio) 2003 2009
TOYOTA 4-Runner 2000 2002
TOYOTA 4-Runner 1996 1999
TOYOTA 4-Runner 1992 1995
TOYOTA 4-Runner 1989 1991
TOYOTA 4-Runner 1987 1988
TOYOTA Avalon  (with nav) 2013* 2016*
TOYOTA Avalon  (without nav) 2013* 2016*
TOYOTA Avalon  (without nav) 2011* 2012*
TOYOTA Avalon  (without JBL amp) 2005* 2010*
TOYOTA Avalon 2000 2004
TOYOTA Avalon 1995 1999
TOYOTA Camry 2015 2017
TOYOTA Camry 2014 2014
TOYOTA Camry (with nav) 2012 2013
TOYOTA Camry (without nav) 2012 2013
TOYOTA Camry 2007 2011
TOYOTA Camry (with factory  nav) 2002 2006
TOYOTA Camry (without factory  nav) 2002 2006
TOYOTA Camry 2000 2001
TOYOTA Camry 1997 1999
TOYOTA Camry DX 1992 1996
TOYOTA Camry LE 1992 1996
TOYOTA Camry 1989 1991
TOYOTA Camry 1987 1988
TOYOTA Camry Solara (black dash) 2004 2008
TOYOTA Camry Solara (silver dash) 2004 2008
TOYOTA Camry Solara 2000 2003
TOYOTA Camry Solara 1999 2003
TOYOTA Camry Wagon 1992 1996
TOYOTA Celica 2000 2005
TOYOTA Celica 1994 1999
TOYOTA Celica 1990 1993
TOYOTA Celica 1987 1989
TOYOTA Corolla 2017 2017
TOYOTA Corolla* 2014* 2016*
TOYOTA Corolla 2012 2013
TOYOTA Corolla 2009 2011
TOYOTA Corolla 2003 2008
TOYOTA Corolla 1998 2002
TOYOTA Corolla 1993 1997
TOYOTA Corolla  (coupe) 1988 1992
TOYOTA Corolla  (coupe, liftback: GTS/SR5) 1987 1987
TOYOTA Corolla  (sedan, wagon) 1988 1992
TOYOTA Corolla  (sedan, wagon) 1987 1987
TOYOTA Corolla FX / FX16 1987 1988
TOYOTA Corolla iM 2017 2017
TOYOTA Echo 2000 2005
TOYOTA FJ Cruiser 2011 2014
TOYOTA FJ Cruiser 2007 2010
TOYOTA Highlander  2014 2016
TOYOTA Highlander 2013 2013
TOYOTA Highlander  (without nav) (black dash) 2008 2012
TOYOTA Highlander  (without nav) (brown dash) 2008 2012
TOYOTA Highlander  (without nav) 2001 2007
TOYOTA Land Cruiser 1993 1996
TOYOTA Land Cruiser 1988 1992
TOYOTA Matrix 2013 2013
TOYOTA Matrix 2011 2012
TOYOTA Matrix (with nav) 2009 2010
TOYOTA Matrix (without nav) 2009 2010
TOYOTA Matrix 2005 2008
TOYOTA MR2  Spyder 2000 2003
TOYOTA MR2 1991 1995
TOYOTA MR2 1987 1990
TOYOTA Paseo 1996 1997
TOYOTA Paseo 1992 1995
TOYOTA Pickup 1989 1995
TOYOTA Pickup 1987 1988
TOYOTA Previa Van 1991 1997
TOYOTA Prius C 2015 2016
TOYOTA Prius C 2012 2014
TOYOTA Prius V 2012 2017
TOYOTA Prius / Prius Plug-In (PHV) 2016 2017
TOYOTA Prius / Prius Plug-In (PHV) (with nav) 2012 2015
TOYOTA Prius / Prius Plug-In (PHV) (without nav) 2012 2015
TOYOTA Prius / Prius Plug-in 2010 2011
TOYOTA Prius 2004 2009
TOYOTA RAV-4 2014.5 2016
TOYOTA RAV-4 2013 2014.5
TOYOTA RAV-4 2012 2012
TOYOTA RAV-4 2006 2011
TOYOTA RAV-4 2004 2005
TOYOTA RAV-4 2001 2003
TOYOTA RAV-4 1996 2000
TOYOTA Sequoia (high gloss black dash) 2014 2016
TOYOTA Sequoia (matte black dash) 2014 2016
TOYOTA Sequoia (with nav) (high gloss black dash) 2013 2013
TOYOTA Sequoia (with nav) (matte black dash) 2013 2013
TOYOTA Sequoia (without nav) (high gloss black dash) 2013 2013
TOYOTA Sequoia (without nav) (matte black dash) 2013 2013
TOYOTA Sequoia (high gloss black dash) 2008 2012
TOYOTA Sequoia (matte black dash) 2008 2012
TOYOTA Sequoia 2005 2007
TOYOTA Sequoia 2003 2004
TOYOTA Sequoia 2001 2002
TOYOTA Sienna 2016 2016
TOYOTA Sienna 2015 2015
TOYOTA Sienna 2011 2014
TOYOTA Sienna 2004 2010
TOYOTA Sienna 2000 2003
TOYOTA Sienna 1996 1999
TOYOTA Solara (black dash) 2004 2008
TOYOTA Solara (silver dash) 2004 2008
TOYOTA Solara 1999 2003
TOYOTA Supra 1986.5 1992
TOYOTA
TOYOTA
T-100
Tacoma*
1993
2017*
1998
2017*
TOYOTA Tacoma* 2016* 2016*
TOYOTA Tacoma (high gloss charcoal dash)  2014 2015
TOYOTA Tacoma (matte black dash) 2014 2015
TOYOTA Tacoma (gloss dash)  2012 2013
TOYOTA Tacoma (matte black dash) 2012 2013
TOYOTA Tacoma (black dash) 2005 2011
TOYOTA Tacoma (gray dash) 2005 2011
TOYOTA Tacoma 2000 2004
TOYOTA Tacoma 1995 1999
TOYOTA Tercel 1995 1998
TOYOTA Tercel 1991 1994
TOYOTA Tercel 1987 1990
TOYOTA Tundra (high gloss) 2014 2016
TOYOTA Tundra (high gloss with silver sides) 2014 2016
TOYOTA Tundra (high gloss black dash) 2007 2013
TOYOTA Tundra (matte black dash) 2007 2013
TOYOTA Tundra 2006 2006
TOYOTA Tundra Double Cab (four door) 2004 2005
TOYOTA Tundra Access Cab/ reg cab 2004 2005
TOYOTA Tundra 2003 2003
TOYOTA Tundra 2000 2002
TOYOTA Van 1987 1990
TOYOTA Venza 2015 2015
TOYOTA Venza (with HDD based nav) 2013 2014
TOYOTA Venza (with SD card based nav) 2013 2014
TOYOTA Venza 2009 2012
TOYOTA Yaris 2012 2016
TOYOTA Yaris 2007 2011
TOYOTA Yaris (with Power Package option) 2007 2011


*The top of our plug may need to be shaved down ~2mm or 1/16" inch with some sand paper or a file, we have images we can send to illustrate.  Toyota has multiple suppliers for their radio plugs during certain production runs so there is a slight fitment variance with our plugs.


We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with Toyota Motor Sales USA Inc., or any of its subsidiaries or its affiliates. The official Toyota Motor Sales USA Inc. website can be found at http://www.toyota.com. The name “Toyota” as well as related names, marks, emblems and images are registered trademarks of Toyota Motor Sales USA Inc

The use in this website and/or in related promotional print or video material of trademarked names and images is strictly for editorial and descriptive purposes, and no commercial claim to their use, or suggestion of sponsorship or endorsement, is made by MotoCARR. Those words or terms that the authors and publisher have reason to believe are trademarks are designated as such by the use of initial capitalization, where appropriate. However no attempt has been made to identify or designate all words or terms to which trademark or other proprietary rights may exist. Nothing contained herein is intended to express a judgment on, or affect the validity of legal status of, any word or term as a trademark, service mark, or other proprietary mark.

Converter adjustment instructions:
  1. After completing all of the necessary connections, turn the adjustment pots all of the way down by rotating them completely counter-clockwise.
  2. Turn the stereo system on and adjust the main volume control on the stereo to approximately 3/4 maximum volume.
  3. Select one of the adjustment pots and turn it slowly clockwise until you notice audio distortion and then stop.
  4. Turn the remaining pot to the same position as the previously adjusted pot.
