Ford 2011-2018 Factory Radio Add A Subwoofer Amp Plug and Play Harness RCA Cable


Want to add a subwoofer to your original stereo?

Don’t want or know how to cut into your wiring?


Take the wiring guess work out of the installation with this plug and play wire harness!  Installation is as easy as 1, 2, 3!

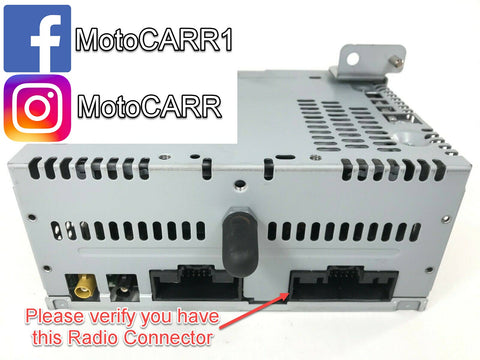

1.      Remove your OEM factory radio

2.      Unplug the OEM factory wiring and plug in this wire harness

3.      Reinstall your OEM factory radio

What is it?

This wire harness provides a connection for one set of RCA cables to provide an audio signal to an external amplifier, as well as an add-a-circuit with remote wire for the remote amplifier turn on wire.  This wire, along with a set of RCA cables, is run to your aftermarket amplifier.  All that’s left for you to do is connect the main power wire from your battery and ground. (Not included)

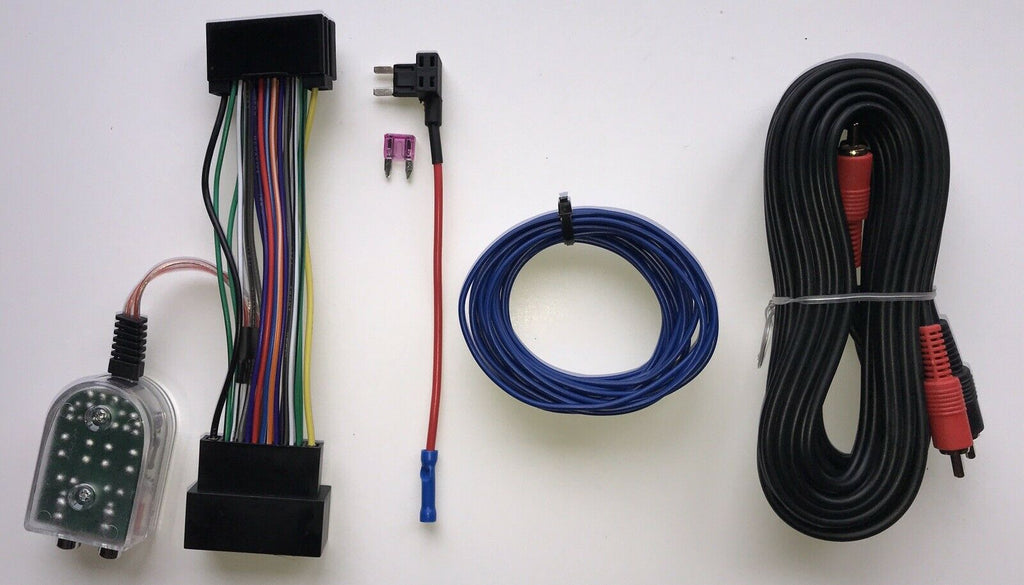

What you will receive
  • One (1) plug and play wire harness
  • One (1) Add-A-Circuit fuse tap
  • One (1) 3 amp fuse
  • One (1) 10ft RCA Cable (RCA pictured is for reference only, colors may vary)

Alternate Options:

Need additional parts for your installation?  Check out our other listings where RCA cables, bass knobs, and amps kits are included!

Compatibility Notes
  • Audio volume to the amplifier can be adjusted by the dials on the harness.  For easier access we recommend using an external volume knob.(Not included but we can provide one)
  • It is up to the installer to select which circuit to use with the Add-A-Circuit.  The radio circuit is most common however any that turns on/off with the ignition could be used if deemed appropriate.
  • A variety of wire colors may be used for the remote wire coming off the harness.  Regardless of color, rest assured it is for the remote turn on of an amplifier.

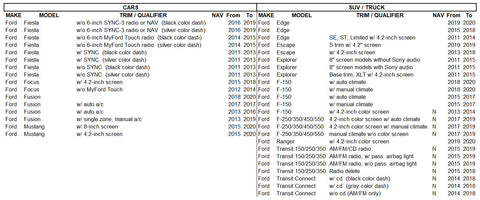

Compatible with these models

MAKE MODEL From To
Ford Edge 2018 2018
Ford Edge 2015 2017
Ford Edge (with 4.2-inch screen) 2011 2014
Ford Escape (with 4.2" screen) 2013 2018
Ford Explorer (with 4.2-inch screen) 2011 2015
Ford F-150 2018 2018
Ford F-150 2015 2017
Ford F-150  (with 4.2-inch color screen) 2013 2014
Ford F-250/350/450/550  (base model "XL" with CD)  ("XLT") 2018 2018
Ford F-250/350/450/550  (base model "XL" with AM/FM only radio) 2018 2018
Ford F-250/350/450/550  (base model "XL" with CD)  ("XLT") 2017 2017
Ford F-250/350/450/550  (base model "XL" with AM/FM only radio) 2017 2017
Ford Fiesta  (without MyFord Touch)  (silver dash) 2014 2018
Ford Fiesta  (without MyFord Touch)  (black dash) 2014 2018
Ford Fiesta  (with SYNC)  (silver dash) 2011 2013
Ford Fiesta  (with SYNC)  (black dash) 2011 2013
Ford Fiesta  (without SYNC)  (silver dash) 2011 2013
Ford Fiesta  (without SYNC)  (black dash) 2011 2013
Ford Focus  (with 4.2-inch screen) 2015 2017
Ford Focus  (without MyFordTouch)  2012 2014
Ford Fusion 2017 2017
Ford Fusion 2013 2016
Ford Mustang  (with 8-inch screen) 2015 2017
Ford Mustang  (with 4-inch screen) 2015 2017
Ford Transit  (without NAV )  (with separate 4.2-inch screen) 2015 2016
Ford Transit  (without NAV)  (without separate 4.2-inch screen) 2015 2018
Ford Transit Connect (with NAV) 2014 2016
Ford Transit Connect  (without NAV)  (with cd)  (gray dash) 2014 2016
Ford Transit Connect   (without NAV)  (with cd)  (black dash) 2014 2016
Ford Transit Connect  (without NAV)  (without cd) 2014 2016

Converter adjustment instructions:
  1. After completing all of the necessary connections, turn the adjustment pots all of the way down by rotating them completely counter-clockwise.
  2. Turn the stereo system on and adjust the main volume control on the stereo to approximately 3/4 maximum volume.
  3. Select one of the adjustment pots and turn it slowly clockwise until you notice audio distortion and then stop.
  4. Turn the remaining pot to the same position as the previously adjusted pot.
