Honda Acura Factory Radio Add A Sub Amp Plug & Play Wire Harness Install Pack

  • Sale
  • $ 75.99

Honda Acura Factory Radio Add A Sub Amp Plug & Play Wire Harness Install Pack

Want to add a subwoofer to your original stereo?

Don’t want or know how to cut into your wiring?

Take the wiring guess work out of the installation with this plug and play wire harness!  Installation is as easy as 1, 2, 3!
  1. Remove your OEM factory radio
  2. Unplug the OEM factory wiring and plug in this wire harness
  3. Reinstall your OEM factory radio
What is it?

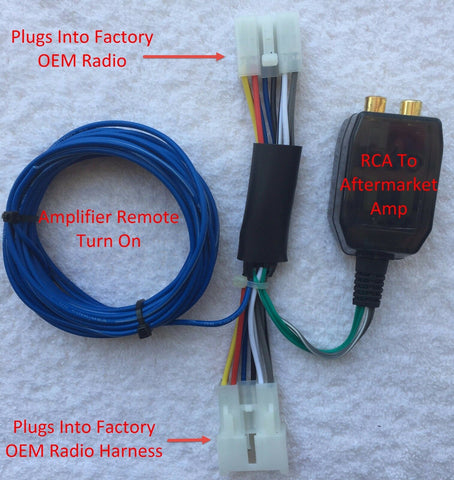

This wire harness provides a connection for one set of RCA cables to provide an audio signal to an external amplifier.  Also pre-installed on the harness is a remote amplifier turn on wire.  This wire, along with a set of RCA cables, is run to your aftermarket amplifier.  All that’s left for you to do is connect the main power wire from your battery and ground. (Not included)

What you will receive
  • One (1) plug and play wire harness
  • One (1) Bass Knob
  • One (1) 3ft RCA Cable (RCA pictured is for reference only, colors may vary)
  • One (1) 12ft RCA Cable (RCA pictured is for reference only, colors may vary)
  • One (1) 4 gauge amplifier installation kit
Compatibility Notes

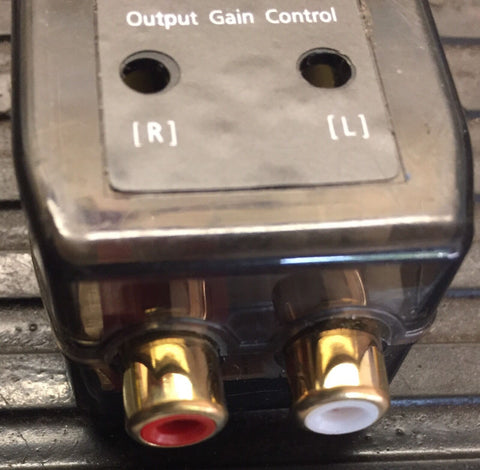

  • Audio volume to the amplifier can be adjusted by the dials on the harness.  For easier access we recommend using an external volume knob.(Not included but we can provide one)
  • A variety of wire colors may be used for the remote wire coming off the harness.  Regardless of color, rest assured it is for the remote turn on of an amplifier.


Acura CL 2001 2003
Acura MDX 2005 2006
Acura MDX 2001 2004
Acura NSX 2005 2005
Acura RSX   2002 2006
Acura RL (without nav) 1999 2003
Acura TL 2007 2008
Acura TL 2004 2006
Acura TL 1999 2003
Acura TSX 2004 2008
Honda Accord  2003 2007
Honda Accord  (lower dash) 2003 2007
Honda Accord 1998 2002
Honda Civic  (DX, excluding Canada)  (with gray dash) 2006 2011
Honda Civic  (DX, excluding Canada)  (with taupe dash) 2006 2011
Honda Civic  (Special Edition) 2005 2005
Honda Civic  (excluding SI and SE models) 2001 2005
Honda Civic Si  (3-door only) 2002 2005
Honda Civic 1999 2000
Honda CR-V 2002 2006
Honda CR-V 1999 2001
Honda Element  (all but LX) 2005 2011
Honda Element  (LX) 2005 2011
Honda Element 2003 2004
Honda Insight 2001 2006
Honda Odyssey 2005 2007
Honda Odyssey  (with nav) 1999 2004
Honda Odyssey  (without nav) 1999 2004
Honda Pilot  (with nav) 2006 2008
Honda Pilot  (without nav) 2006 2008
Honda Pilot 2003 2005
Honda Prelude 1999 2001
Honda Ridgeline  2005 2008
Honda S2000 2000 2009
Isuzu Oasis 1999 1999
Suzuki Aerio 2005 2007
Suzuki Aerio Sedan 2003 2004
Suzuki Aerio 5-door 2003 2004
Suzuki Aerio Sedan 2002 2002
Suzuki Aerio 5-door 2002 2002
Suzuki Grand Vitara  2006 2011
Suzuki Grand Vitara  2003 2005
Suzuki Kizashi 2010 2013
Suzuki SX4 2007 2013
Suzuki XL-7 2003 2006

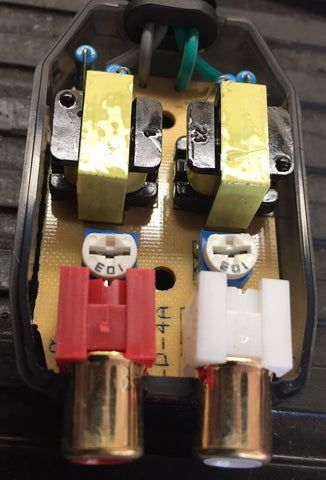

Converter adjustment instructions:
  1. After completing all of the necessary connections, turn the adjustment pots all of the way down by rotating them completely counter-clockwise.
  2. Turn the stereo system on and adjust the main volume control on the stereo to approximately 3/4 maximum volume.
  3. Select one of the adjustment pots and turn it slowly clockwise until you notice audio distortion and then stop.
  4. Turn the remaining pot to the same position as the previously adjusted pot.
